Veeam Replication: Architecture, Failover, and Failback Explained

A common misconception is that Veeam Replication is simply another form of Veeam Backup, when in reality they are designed to solve different business challenges. Veeam Replication creates a ready-to-start copy of a virtual machine at a secondary location, enabling rapid failover and minimal downtime during a disaster or infrastructure outage. Its primary goal is business continuity and achieving low Recovery Time Objectives (RTOs).

However, because replicas are continuously synchronized with production, they can also inherit issues such as accidental deletions, application corruption, or ransomware-encrypted data. Veeam Backups, on the other hand, create independent point-in-time recovery copies that can be retained for extended periods and recovered from a known-good state. This makes backups essential for protecting against data corruption, cyberattacks, compliance requirements, and long-term retention needs. In short, Veeam Replication answers the question, “How quickly can I get my systems running again?” while Veeam Backups answer, “How far back can I recover my data?” A modern cyber-resilience strategy requires both technologies working together—replication for rapid recovery and backups for comprehensive data protection.

What is Veeam Replication?

Veeam Backup & Replication provides image-based replication of virtual machines from a production site to a disaster recovery (DR) site. Unlike backups, replication maintains a ready-to-start copy of a VM at the target location, enabling rapid recovery with minimal downtime.

Key Benefits

  • Low Recovery Time Objective (RTO): Recovery can occur within minutes.
  • Low Recovery Point Objective (RPO): Replicas can be updated as frequently as every few minutes.
  • Automated Disaster Recovery: Integrated testing, orchestration, and failback capabilities.
  • Application Consistency: Supports VSS-aware processing for Microsoft applications.
  • Network Remapping: Automatically adjusts networking during failover.

Additional Replication Concepts from Veeam Backup & Replication

Veeam replication is designed for both high availability and disaster recovery scenarios. In an onsite design, the replica may reside close to the production workload to support rapid recovery from local host or storage failure. In an offsite design, the replica is stored at a secondary location to protect against site-level incidents such as power loss, facility outage, or major infrastructure failure.

Replication from Backup

Replication from backup reduces the impact on production infrastructure by using an existing backup chain as the replication source. Instead of creating another snapshot and reading VM data directly from production storage, Veeam reuses the backup data already stored in the repository to build or update replica restore points. This is useful when the same workload needs both backup protection and a standby replica for disaster recovery.

Failover Planning Considerations

  • Application dependency order: Start foundational services such as DNS, Active Directory, and databases before dependent application servers.
  • Network mapping: Confirm that replica VMs will connect to the correct DR networks and avoid IP or hostname conflicts.
  • Restore point selection: Choose a restore point that balances data currency with known-good application state.
  • Testing: Use test failover to validate recovery without interrupting production services.
  • Documentation: Record ownership, escalation paths, startup order, validation checks, and rollback criteria.

Operational Best Practices

  • Align replication frequency with business RPO requirements and available bandwidth.
  • Separate backup and replication roles where possible so that long-term recovery and rapid failover are both available.
  • Use backup repositories and replica targets that match the criticality of the protected workloads.
  • Monitor job performance, bottlenecks, and warning states so replica restore points remain usable.
  • Regularly rehearse failover and failback to confirm that people, process, network, and application dependencies work as expected.

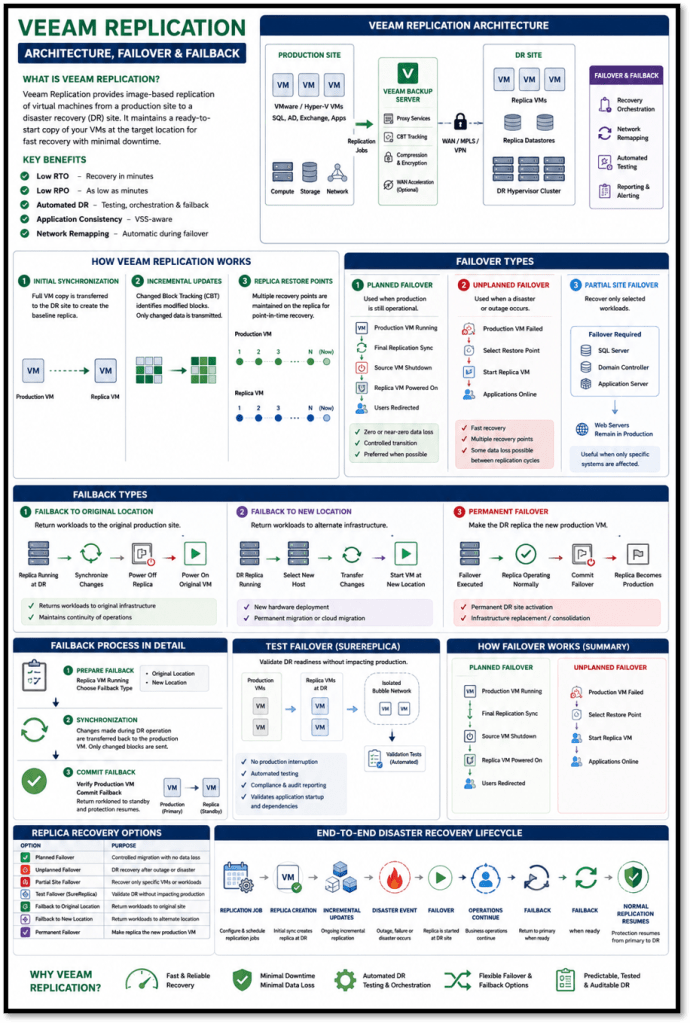

Veeam Replication Architecture

Here is an Architectural overview of Veeam Replication. I’ll go through the types of Failover and Failback in detail.

Setting Up a Replication Job

Lets setup a Replication Job in Veeam Backup & Replication v13.

  1. Right-click on the Jobs node and select Replication → Virtual Machine to launch a New Replication Job wizard.

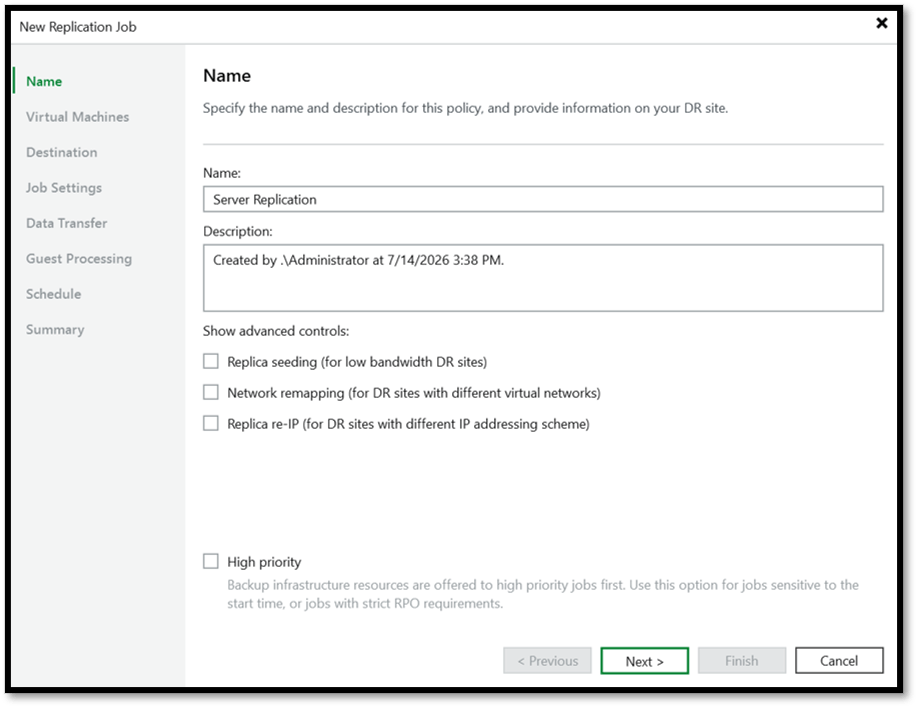

  1. Give the Replication Job a Name. I have left other settings unselected in this instance. Select the Checkbox if you are looking to Seed, Remap or re-IP. Further configuration options becomes available on the left hand side as you continue setting up the Replication Job.
  1. At the Virtual Machines step, click on Add and select the VMs that you would like to Replicate. You can also select VMs using Tags if Tags are being used in your VMWare Environment.

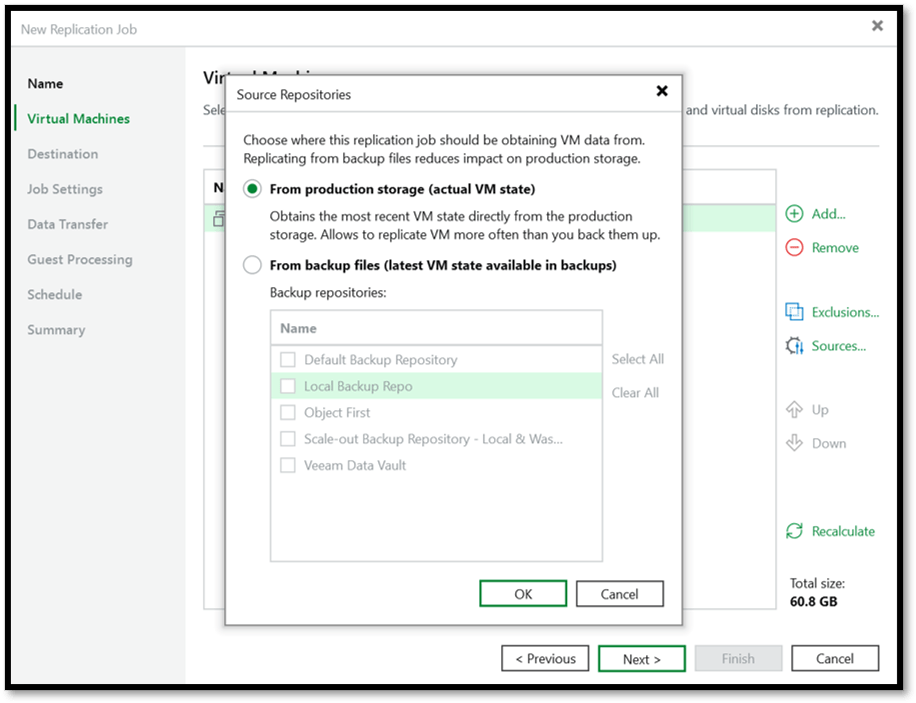

  1. At the Virtual Machines step, select Sources. You have the option to select From Production Storage (Actual VM State) or From Backup Files (latest VM state available in Backups). In my example I have gone with the From Production Storage.
  1. At the destination step, select the destination Host or Cluster, Resource Pool, VM Folder & Datastore. There are slightly less options if you are using Hyper-V.
  1. At the Job Settings, specify the Repository for replica Metadata, Replica name suffix and Restore points to Keep.
  1. At the Data Transfer step, select the Source and Target proxy and the Data Transfer method – Direct or Through built-in WAN Accelerators.

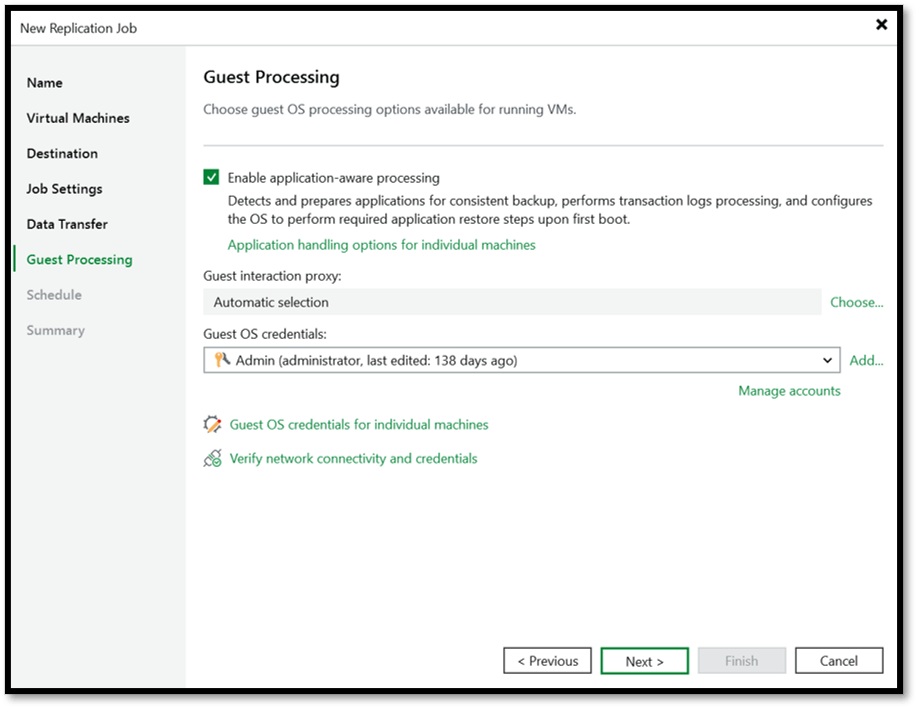

  1. Select the Checkbox to Enable Application-aware processing which will allow the creation of transactionally consistent replicas.
  1. Finally, select the Run the job automatically and schedule the replication job.

How Veeam Replication Works

1. Initial Synchronization

  • Full VM copy is transferred to the DR site.
  • Creates the baseline replica VM.

2. Incremental Updates

  • Changed Block Tracking (CBT) identifies modified blocks.
  • Only changed data is transmitted.
  • Replica restore points are maintained.

3. Replica Restore Points

  • Multiple recovery points can be retained.
  • Allows rollback to a previous point-in-time state.

Types of Veeam Failover

1. Planned Failover

    Used when production is still operational.

    Typical Scenarios

    • Datacenter maintenance
    • Hardware upgrades
    • Migration activities
    • DR drills

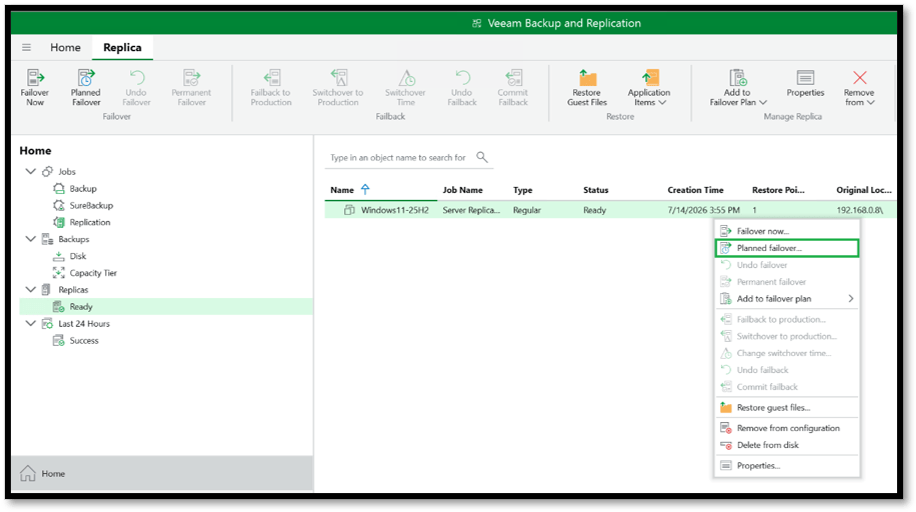

    Right-click on the Replica in Veeam Backup and Replication and select Planned Failover.

    • Zero or near-zero data loss.
    • Controlled transition.
    • Preferred option whenever possible.

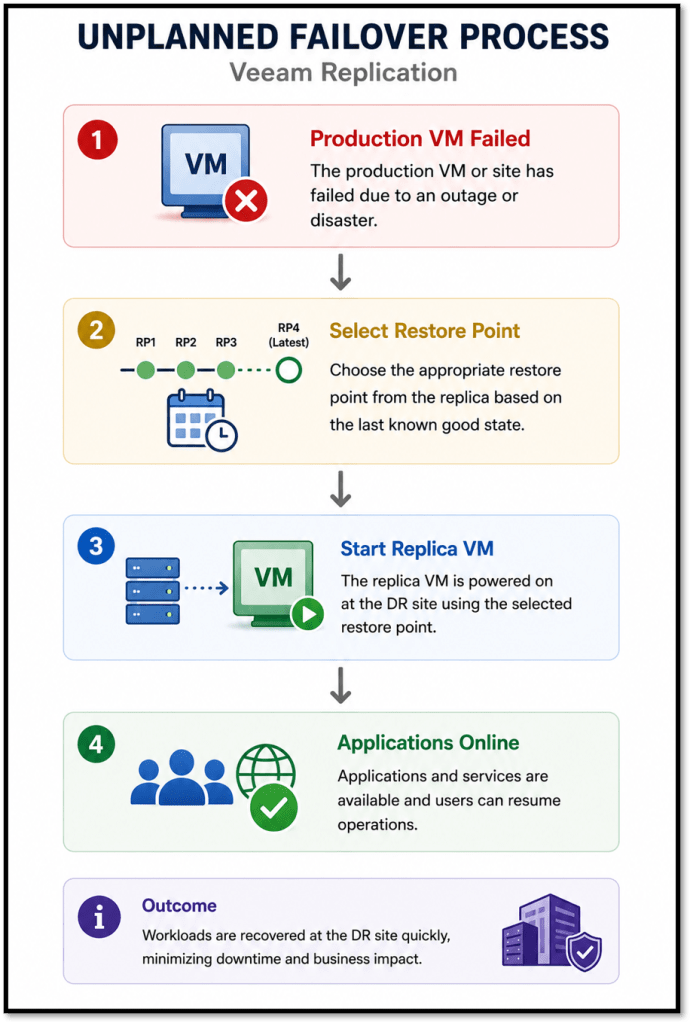

    2. Unplanned Failover

    Used during an actual disaster.

    Typical Scenarios

    • Storage failure
    • Host failure
    • Datacenter outage
    • Ransomware incident
    • Network outage

    Right-click on the Replica in Veeam Backup and Replication and select Failover Now.

    Advantages

    • Fast recovery.
    • Multiple recovery points available.
    • Minimal downtime.

    Considerations

    • Some data loss may occur between the last replication cycle and the failure.

    3. Partial Site Failover

    Recover only selected workloads.

    Failover Required

    Web Servers Remain in Production

    Useful when only specific systems are affected.

    Types of Veeam Failback

    After production is restored, workloads can be returned from DR to the primary site.

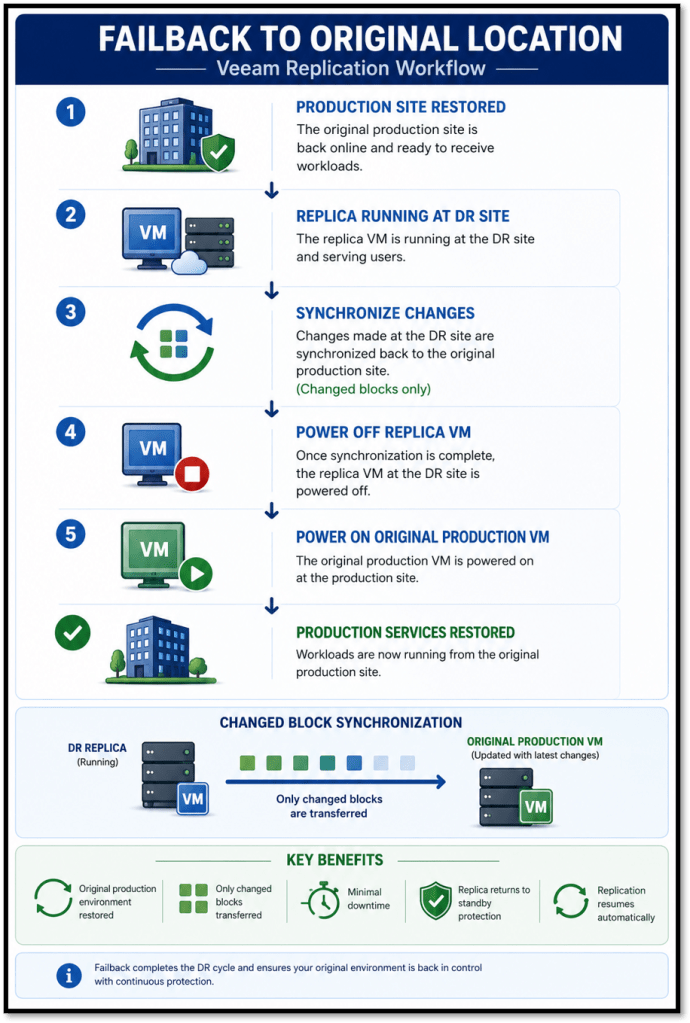

    1. Failback to Original Location

    The most common option.

    Right-click on an Active Replica in Veeam Backup and Replication and select Failback to production.

    Select Failback to the original VM

    Benefits

    • Returns workloads to their original infrastructure.
    • Maintains continuity of operations.

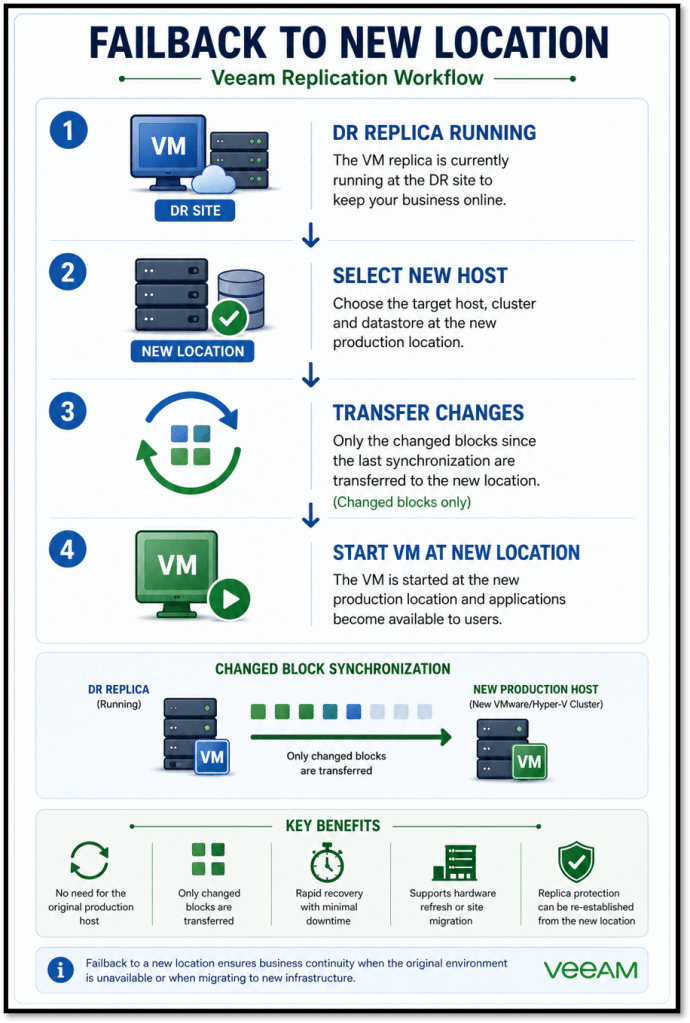

    2. Failback to a New Location

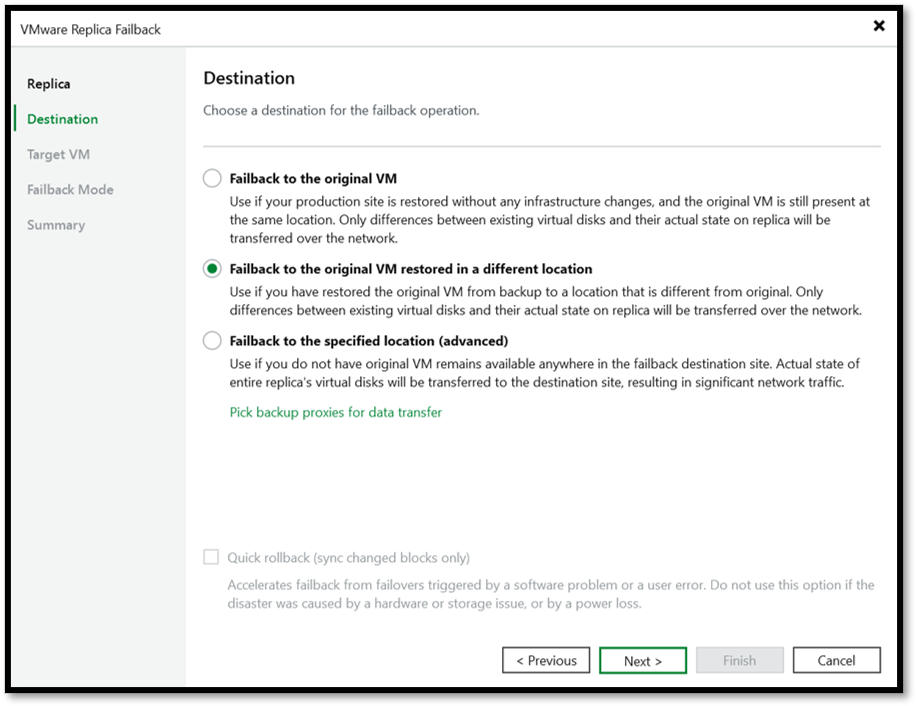

    Used when the original infrastructure is unavailable and you would like to failback to a different location. Select Failback to the original VM restored in a different location or Failback to the specific location (advanced).

    Use Cases

    • New hardware deployment.
    • Permanent datacenter migration.
    • Cloud migration projects.

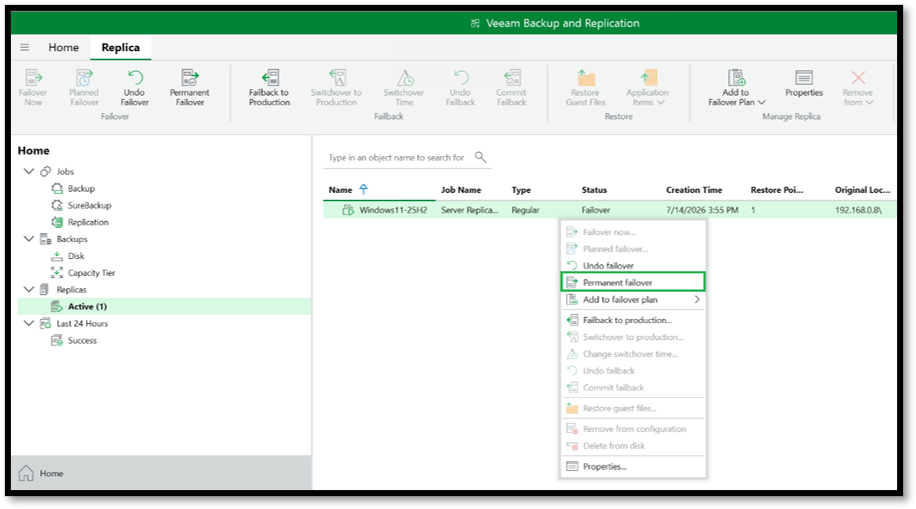

    3. Permanent Failover

    The DR replica becomes the new production VM. Select this option only if you are looking to run the failed over VM in DR as a production VM.

    Veeam Replica Recovery Options

    Recovery OptionPurpose
    Planned FailoverControlled migration with no data loss
    Unplanned FailoverDR recovery after outage
    Test FailoverValidate DR without affecting production
    Failback to OriginalReturn to original production location
    Failback to New LocationReturn to alternate infrastructure
    Permanent FailoverMake replica the new production VM

    Test Failover (SureReplica)

    A critical feature often overlooked is Test Failover.

    Purpose

    Validate DR readiness without impacting production.

    Benefits:

    • No production interruption.
    • Automated testing.
    • Compliance and audit reporting.
    • Validates application startup and dependencies.

    Final Thoughts

    Veeam Replication provides availability by maintaining bootable VM replicas at a secondary site. Organizations can leverage Planned Failover, Unplanned Failover, Partial Site Failover, Test Failover (SureReplica), Failback to Original Location, Failback to New Location, and Permanent Failover to meet disaster recovery objectives. Combined with automated orchestration through Veeam Recovery Orchestrator, organizations can achieve predictable, tested, and auditable disaster recovery with very low RTOs and RPOs.
